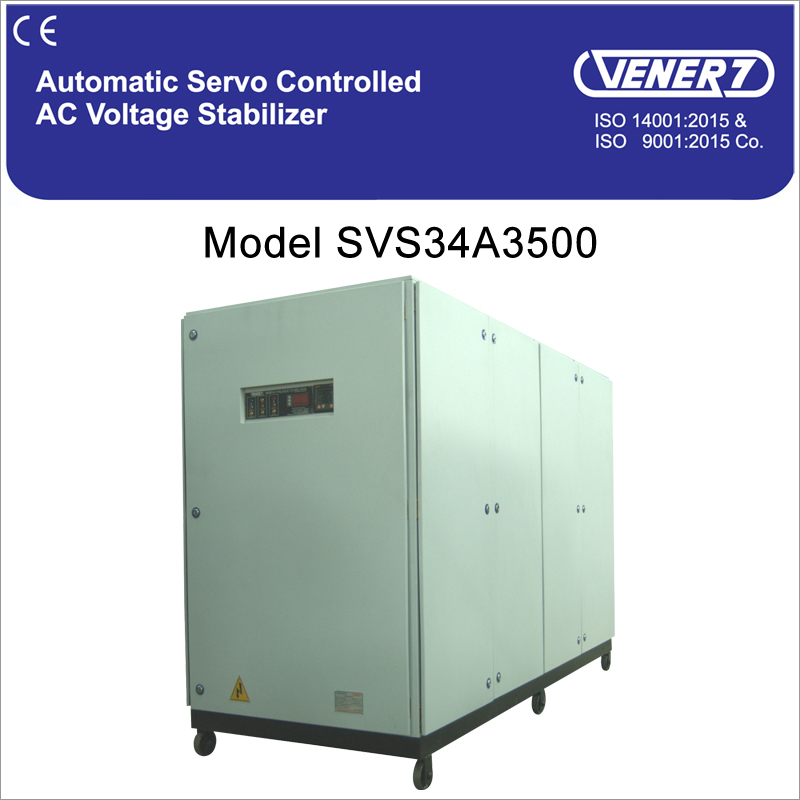

400kVA Automatic Servo Controlled Air Cooled Voltage Stabilizer
Product Details:
- Warranty 5 Year
- Click to View more
X
400kVA Automatic Servo Controlled Air Cooled Voltage Stabilizer Price And Quantity
- 1 Piece
400kVA Automatic Servo Controlled Air Cooled Voltage Stabilizer Product Specifications
- 5 Year
400kVA Automatic Servo Controlled Air Cooled Voltage Stabilizer Trade Information
- Delhi
- Letter of Credit at Sight (Sight L/C) Cash in Advance (CID) Cheque
- Wooden Pallet / Wooden Box
- IS 9815, ISO 9001-2015, ISO 14001-2015 CE Conformity EN61558-1:2005+A1:2009
Product Description
Technical Specifications - Model SVS34A3400| Rating | : | 400 kVA, 3 Phase, 4 Wire |
| Output Current | : | 577 Amps per phase |
| Input Voltage Range | : | 340V to 460V, 47Hz to 63Hz, 4 Wire |
| Output Voltage | : | 400V +/- 1% |
| Response Time | : | Less than 10ms |
| Suitability | : | Suitable for all power factor loads |
| Cooling | : | Natural air Cooled |
| Installation | : | Indoor type |
| Degree of Protection | : | IP-30 |
| No Load Loss | : | Less than 0.4% |
| Efficiency | : | 98-99% |
| Input / Output Termination | : | On Brass studs / Connectors |
| Winding & Wiring Material | : | Copper EC grade (99.9% Pure) |
| Drive | : | Direct AC drive for fastest voltage correction and durability |
| Controls | : | All the three phases controlled individually for better voltage and load management. |
| Applicable Standard | : | IS 9815 |
| : | ISO 9001-2015 , ISO 14001-2015 | |
| International Marking | : | CE Conformity EN61558-1:2005+A1:2009 |
Optional Protections
- Overload Cut-Off and Short Circuit Protection.
- Low/High Voltage (out of input range) Alarm or Cut-Off.
- Phase Missing / Phase Reversal Alarm or Cut-Off.
Optional Features
- Digital Multifunction Meter. Manual Bypass & Auto Phase Correction
Salient Features
- "IC" based solid-state, relay less, plug in control cards for easy online serviceability.
- Output voltage adjustable 6% of set voltage from front panel.
- Meters on front panel for easy monitoring of input and output voltage along with limit indicators.
- Provision for Auto / Manual control from the front panel.
- Wide ambient temperature operation from -20 C to 50 C.
- Due to new innovations & improvements the technical specifications are subject to change.
